01
Inflatable castles
Airtight seam design, chamber layout and pressure retention guide the weldable material brief.
Exact product catalogue650 GSM
Inflatable PVC
DTR-IF-TOY-S2323-G0650 / fixed sellable product650 GSM
23 × 23 / sq.in
1000D × 1000D polyester · maximum width 1.55 m · standard roll 50 m
Fixed product specification
Read the
exact record.
This product page describes one fixed DuraTarp specification. Final TDS, performance testing and compliance documentation are issued against this order code.
- DuraTarp SKU
- DTR-IF-TOY-S2323-G0650
- Fixed weight
- 650 GSM
- Thickness
- 0.52 mm
- Base fabric / mesh
- 1000D × 1000D polyester
- Weave / opening
- 23 × 23 / sq.in
- Maximum width
- 1.55 m
- Standard roll length
- 50 m
- Packaging
- Kraft Paper
- Surface
- Airtight welded surface
- Primary applications
- Inflatable castles · Water slides · Air tents
Material proof
The seam holds the pressure.
Inflatable material selection starts with airtight coating, chamber design, weld path and operating pressure.
Fixed specification: 650 GSM · 23 × 23 / sq.in · 1.55 m

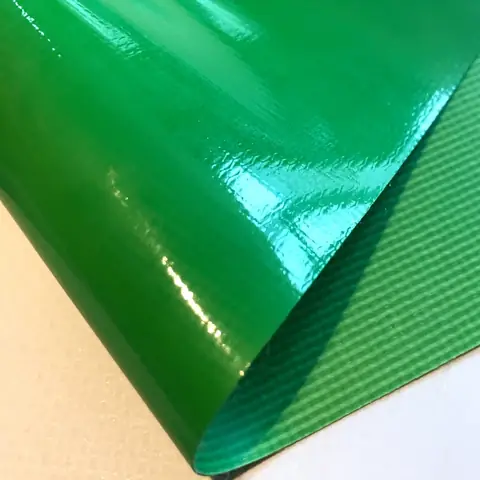

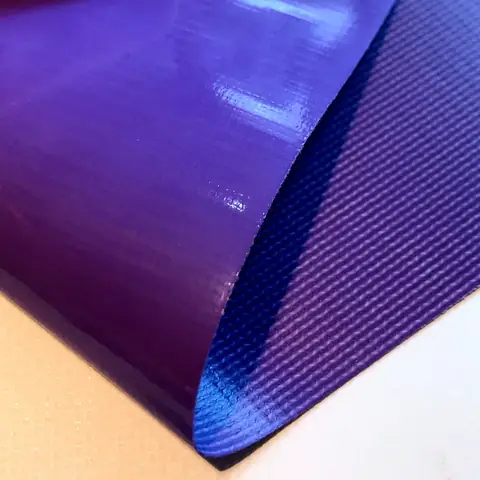

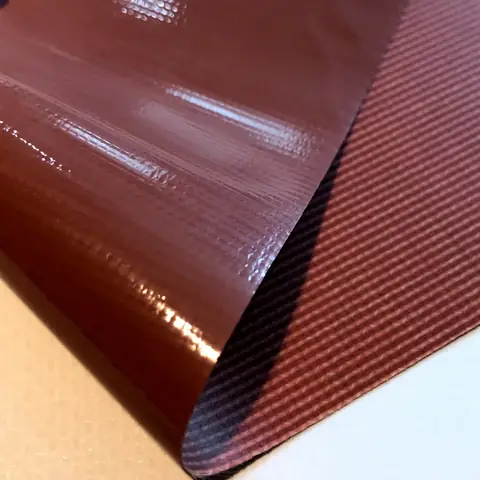

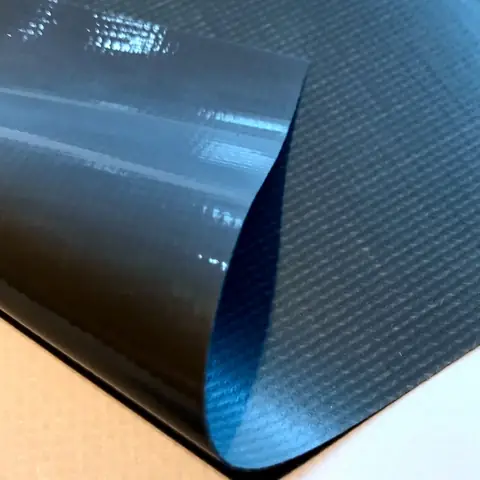

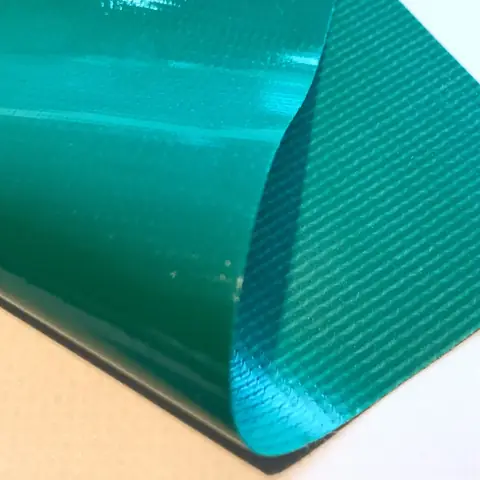

Inflatable PVC surface references
Read the colour
with the scrim.
These supplied references show colour, glossy airtight face and woven base structure for an inflatable PVC discussion. Confirm the final colour, construction and order code against an approved DuraTarp sample.
Visual reference only. Airtight performance, welding compatibility, thickness, reinforcement and final colour are confirmed against the exact DuraTarp SKU and approved order sample.
Application record
Build around
the end use.
02
Water slides
Water contact, thickness, seam plan and installation sequence lead the liner selection.
03
Air tents
Panel geometry, roof load, weld path and weather exposure define the finished fabric requirement.
Compare related SKUs
Next exact
specification.
DTR-CT-TRK-S2020-G0650
PVC Coated
650 GSM
1000D × 1000D polyester
20 × 20 / sq.in
Width: 3.20 m
Roll: 50 m / 100 m
Truck covers · Lorry covers · Tent sidewalls
DTR-LM-HV-S1212-G0650
PVC Laminated
650 GSM
1000D × 1000D polyester
12 × 12 / sq.in
Width: 3.20 m
Roll: 50 m / 100 m
Outdoor covers · Temporary structures · Industrial protection
DTR-EM-TEX-S2020-G0650
Embossed PVC
650 GSM
1000D × 1000D polyester
20 × 20 / sq.in
Width: 3.20 m
Roll: 50 m / 100 m
Awnings · Outdoor covers · Visual tarps
Quote this SKU
